DFRobot has launched the Maqueen Plus V3, a high-tech educational robot made for STEM learning and competitions in elementary and middle schools. To make robotics education more interesting and successful, it mixes accurate sensors, smart algorithms, and sturdy hardware.
Important characteristics are a matrix laser ranging sensor for accurate distance and obstacle detection, motor encoders with PID control for exact motion, and integrated algorithms for line-tracking and intersection recognition, which help to streamline difficult navigation chores. It even comes with dual light sensors, customizable RGB headlights and ambient lights, and a detachable metal motor with voltage stabilisation for consistent performance and simple servicing.
It is flexible for both competitive events and classroom learning thanks to its multiple onboard sensors, expansion choices, and safety features. Mostly utilised in robotics competitions and STEM robot instruction, the Maqueen Plus V3 aids students in developing autonomous navigation, obstacle avoidance, and complex task execution at the same time, encouraging problem-solving ability and creativity.
Maqueen Plus V3 Specifications:
- Power Supply:
- 4x AA batteries (1.5V dry cell or 1.2V Ni-MH rechargeable)
- Operating voltage: 3.5V – 6V
- Battery reverse connection protection
- Line Tracking System:
- 5 sensors with calibration button
- Digital/Analog output

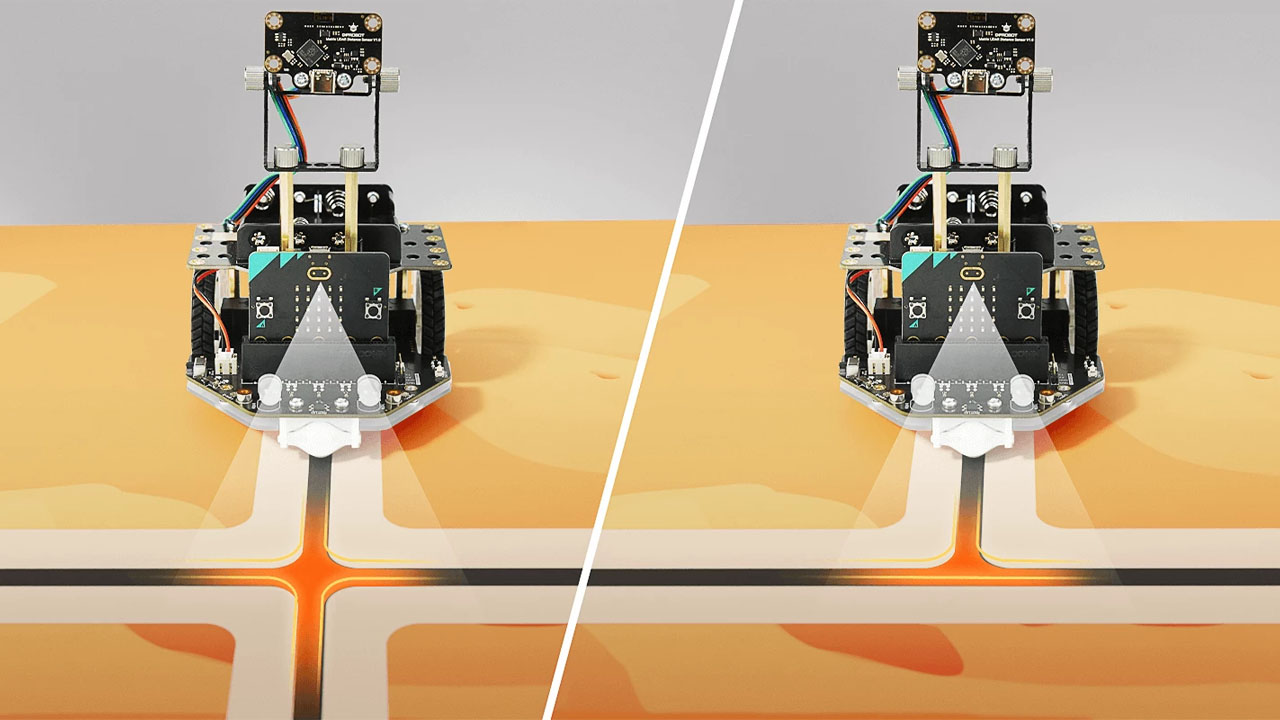

- Built-in intersection recognition: Crossroad, T-junction, Right and Straight, Left and Straight
- 5 adjustable algorithm speed levels
- Matrix Laser Ranging Sensor:
- Interfaces: I2C / UART / USB (PH2.0-4P and Type-C)
- Resolution: 8×8 (64 points)
- Modes: Matrix measurement / Intelligent obstacle avoidance
- Ranging range: 20mm – 4000mm
- Accuracy: ±11mm (20–200mm white), ±12mm (grey), ±5–6% (200–4000mm)
- Update rate: 15Hz – 60Hz
- Detection angle: 60° H x 60° V (90° diagonal)
- I2C address: 0x30 – 0x33 (4 selectable)
- Class 1 laser safety, USB firmware update support
- Motors and Motion Control:
- 2x N20 metal motors with encoders (detachable, screw-fixed)
- Independent 5V regulated power supply
- Magnetic induction encoders (4-line resolution)
- PID control for precise distance and angle navigation
- Speed unit: cm/min (suggested cm/s for robotics use)
- Lighting and Audio:
- 2x programmable RGB headlights
- 4x WS2812 ambient RGB LEDs
- 1x buzzer
- Additional Sensors:
- 2x light intensity sensors (0–1023 range)
- 1x infrared receiver
- Mechanical and Expansion:
- Metal bracket parts x2 (adjustable, 270° range with thumb screws)
- 14x extended GPIOs
- Bottom acrylic protection plate
- Dedicated firmware upgrade button and interface
- Dimensions and Accessories:
- Comes with baseboard, motors, AA battery board, matrix laser sensor, cables, wheels, line-tracking map, screwdriver, mounting frame, screws, and copper pillars

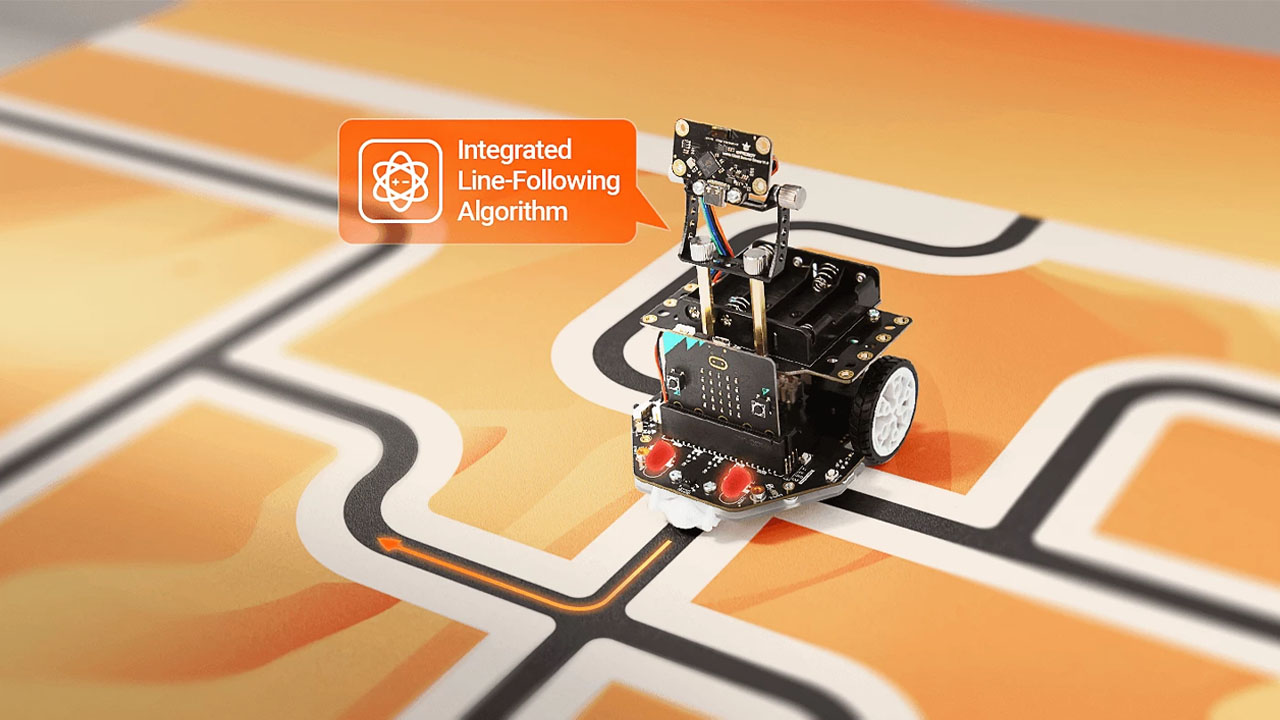

Wide software support of the Maqueen Plus V3 makes it available for novices and advanced users alike. With MakeCode, Mind+, or the Arduino IDE, it can be programmed, therefore offering students and instructors flexibility in coding. It works with micro:bit and Arduino platforms. Its built-in line-tracking and intersection identification algorithms run independently of the main controller, therefore releasing resources for other duties. For sensor data access and control, the robot also supports I2C, UART, and USB communication; firmware upgrades through USB guarantee long-term usefulness and feature updates.
At the time of writing, the STEM Educational Robot Maqueen Plus V3 is available on DFRobot at $69.90, whether you opt for the AA-battery or 18650 battery version. In India, online retailers such as Robu offer it at approximately ₹ 7,999 (inclusive of GST), and Kiwi Electronics lists the AA-battery version for roughly ₹ 8,731. In Australia, Core Electronics currently offers the 18650 battery model for AU$112.20 including GST (special price), with limited stock and an estimated dispatch window of September 18–22, 2025. For more information, please visit the Wiki page.
