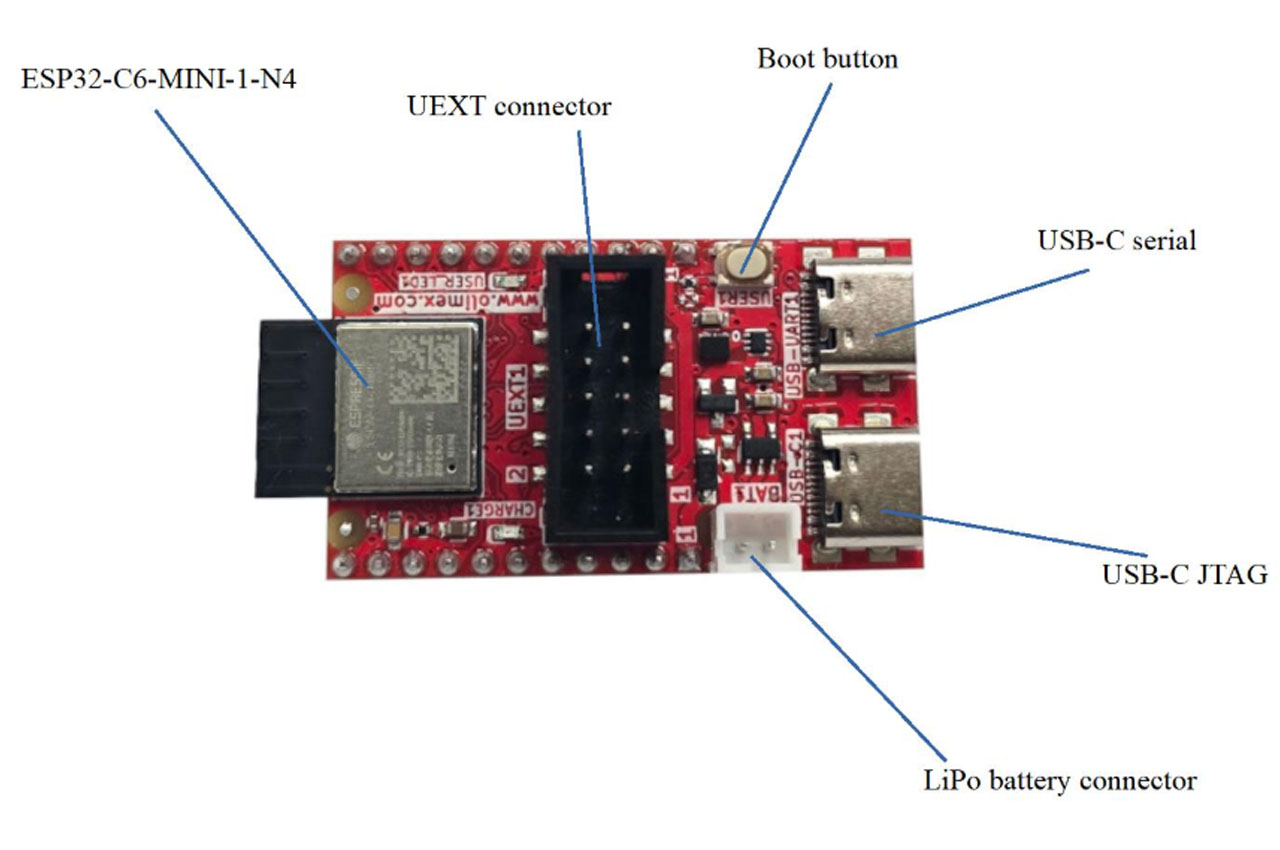

The ESP32-C6-DevKit-Lipo is a miniature (less than 2 in / 4 cm) open-source development board by Olimex, offered with Wi-Fi 6, Bluetooth 5 LE, Zigbee, Thread, and Matter connectivity, which uses the ESP32-C6-MINI-1-N4 module. It is targeted at simple prototyping with 0.1-inch breadboard-compatible headers and has 18 GPIOs and is suitable for sensors, automation, wireless access, and low-power connected devices.
The board combines a RISC-V 160 MHz 32-bit CPU, 512 KB RAM, 4 MB Flash, USB-C programming with native USB-JTAG, LiPo battery charger with battery voltage monitoring, and battery packs, complete with battery packs, and is a fit for portable or off-grid use. Having such features as expansion to an external voltage detector and a small size of 45 x 25.4 mm, it can be utilised in embedded development, prototyping, home-automation devices, wireless nodes, and low-powered IoT products.
ESP32-C6-DevKit-Lipo Development Board Specifications:
- Module: ESP32-C6-MINI-1-N4
- CPU: 32-bit RISC-V core @ 160 MHz
- Wireless: WiFi 6 (2.4 GHz), Bluetooth 5 LE, Zigbee, Thread, Matter
- Memory: 512 KB RAM
- Flash: 4 MB

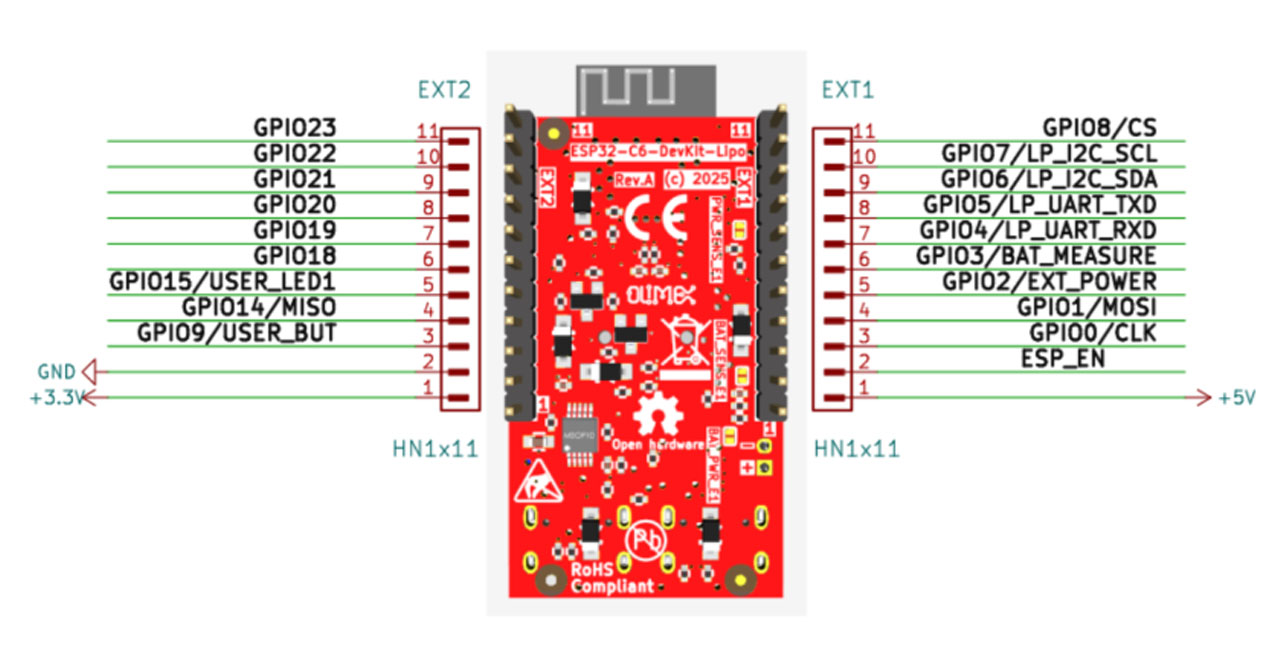

- GPIO: 18 pins via 0.1-inch headers (0.9-inch spacing; breadboard-friendly)
- Interfaces:
- USB-C for programming (auto-boot)
- USB-C for native JTAG
- Expansion: UEXT connector
- Power:
- 5V via USB-C
- LiPo battery charger (with connector)
- battery voltage monitoring
- external voltage detector
- Buttons: Boot/user button
- Dimensions: 45 x 25.4 mm
The ESP-IDF SDK (WiFi 6, BLE, Zigbee, Thread, Matter) and Arduino IDE can also be used to prototype the ESP32-C6-DevKit-Lipo with ease. It also supports the native USB debugging and JTAG as well as ready-to-use libraries, examples and documentation for producing the modern IoT and smart-home applications.
At the time of writing, the ESP32-C6-DevKit-Lipo is priced at €8.95, with bulk pricing at €8.50 for 10–49 units and €8.06 for 50–10,000 units. The board is currently in stock and available for immediate purchase.
