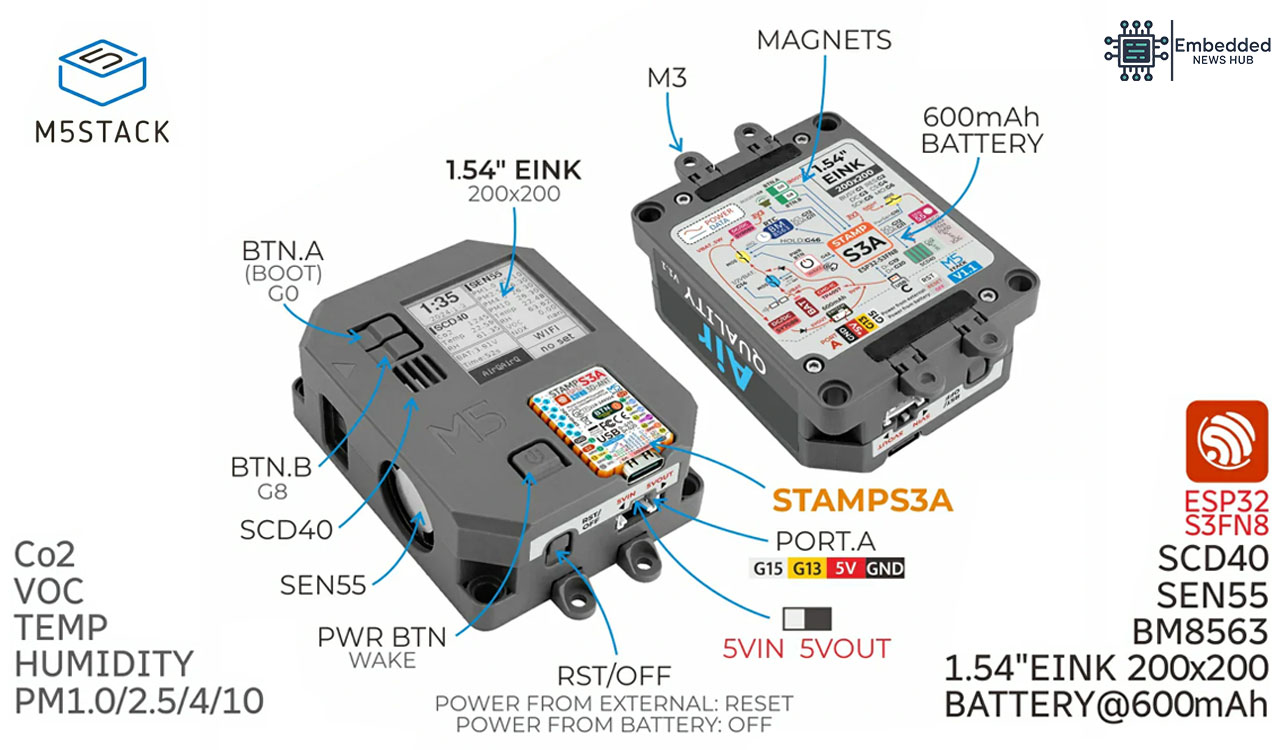

This is an integrated low-power air quality monitoring kit that uses the M5StampS3A controller (based on an ESP32-S3 SoC) along with two air/environment sensors: the SEN55 (for particulates, VOC, temperature, humidity) and the SCD40 (for CO₂ concentration). It has a 1.54-inch e-ink display (200×200 px) for local read-outs, a built-in 600 mAh lithium battery with low-power / sleep and timed wakeup capabilities, plus a real-time clock (RTC) for scheduling. The design includes multiple mounting options (LEGO-compatible holes, a magnetic base, and removable lugs), a buzzer, buttons, and offers WiFi connectivity.
The Air Quality Kit v1.1 with M5StampS3A is a low-power device designed for long-term air monitoring. It features sensors for PM, VOCs, CO₂, temperature, and humidity, it supports cloud upload via Ezdata and offers flexible mounting options like LEGO holes, a magnetic base, and removable lugs. Suitable for homes, schools, hospitals, industrial areas, as well as research projects, distant monitoring, HVAC optimisation, and construction projects for dust suppression.
Previously, we have covered other ESP32-S3-based products, including the WiFIRCard, the Waveshare audio board, and many more. Feel free to check those out for your reference.
M5Stack ESP32-based air quality kit Specifications:
- SoC: ESP32-S3 (M5StampS3A module) dual-core Xtensa LX7 processor
- Storage: 8MB Flash
- Sensors:
- SEN55: PM1.0, PM2.5, PM4, PM10, VOC, temperature, humidity
- SCD40: COâ‚‚ concentration
- Display: 1.54-inch e-ink screen with 200×200 resolution
- Connectivity: WiFi, data upload to Ezdata cloud
- Audio: Onboard passive buzzer
- Interface: Grove HY2.0-4P connector
- Buttons: Button A, Button B, power on, reset, power off
- RTC: Real-time clock with timed wake-up function
- Battery: 600 mAh lithium battery with power management

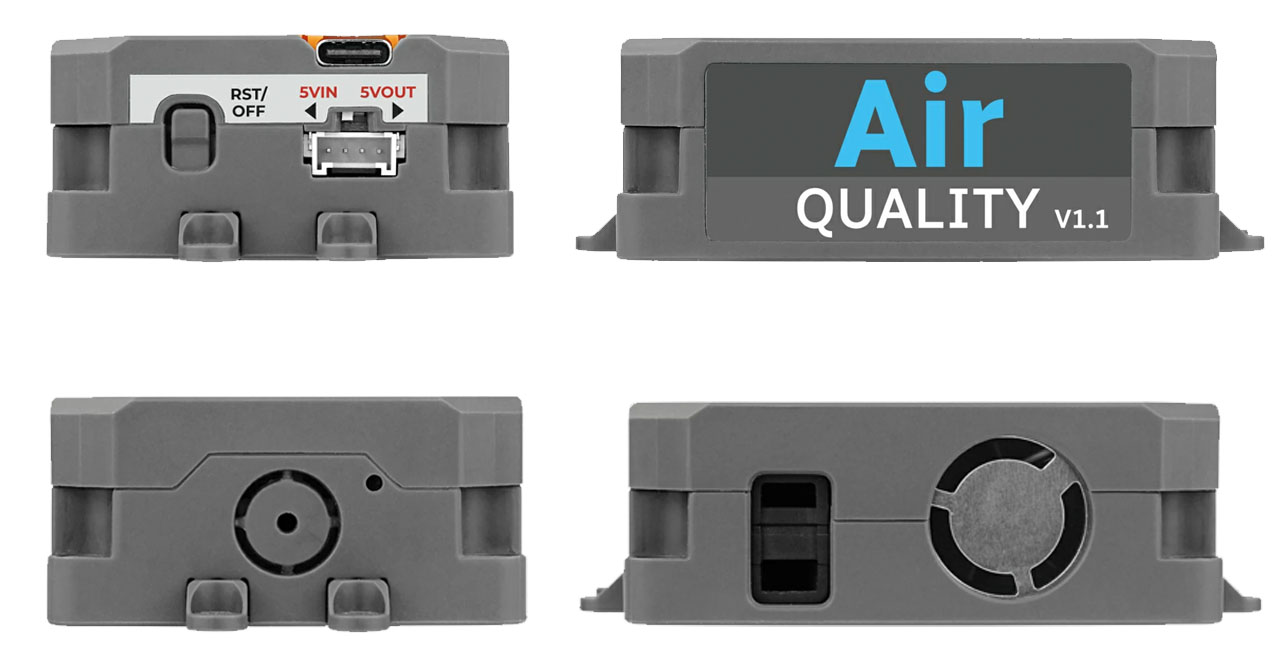

- Mounting: LEGO mounting holes, magnetic base and removable lugs
- Dimensions: 49.5 × 41.5 × 20.5 mm
Supporting several software systems, the M5Stack Air Quality Kit v1.1 provides great adaptability for various kinds of development. It can be programmed using UiFlow2, M5Stack’s visual programming tool, as well as the Arduino IDE for quick prototyping and the ESP-IDF for more advanced control. Developers can also use PlatformIO for project management and firmware building. In addition, the kit supports Ezdata cloud services, allowing users to upload and monitor air quality data remotely. For more details, you can visit the company’s documentation.
The M5Stack Air Quality Kit v1.1 is priced at $89.90 on the official M5Stack store, though it is currently out of stock there. In Europe, OpenELAB lists it at €118.50, with options for pre-orders or backorders if stock runs out. In India, the kit is available through Robu at ₹11,118 (including GST) and is currently in stock, making it a convenient option for local buyers without international shipping delays. It is also available on AliExpress for $114.80, providing another option for international buyers.
